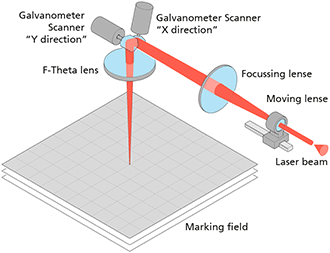

FUNCTIONAL DESCRIPTION
YOUR BENEFITS
The FOCUSSHIFTER DIGITAL II deflection unit enables small spot sizes with flexible software-controlled focusing in the Z-direction, high deflection speed, long-term stability and exceptionally low drift values at 20 bit position resolution. Thanks to its modular, pre-adjusted, compact and robust design, it is perfect for easy and cost-effective integration into specialized applications. Heat development is minimized as a result of the PWM output stages used.
CONFIGURABLE THROUGH AND THROUGH
Lenses, protective glass, mirror substrates and coatings are available for all standard laser types, wavelengths, light densities, focal lengths and processing areas. This makes it possible to process a wide range of tasks to the highest quality standards and with optimized throughput. Using telecentric F-Theta lenses enables an almost vertical processing beam over the entire field. We would be happy to provide a customized configuration for your application.
INTERFACES
Deflection units are compatible with both XY2-100 (16 bit) and SL2-100 (20 bit). The units are controlled digitally using a control card, such as SP-ICE-3 or SP-ICE-1 PCIe PRO.
TYPICAL APPLICATIONS
The FOCUSSHIFTER DIGITAL II is ideally suited for these applications:
- Deep cutting
- Deep engraving
- Creation of 3D images in glass blocks
- marking and structuring at various heights
